Groth Corporation - Series 1800A: 10% Overpressure Pressure/Vacuum Relief Valve
GROTH CORPORATION - a Continental Disc company

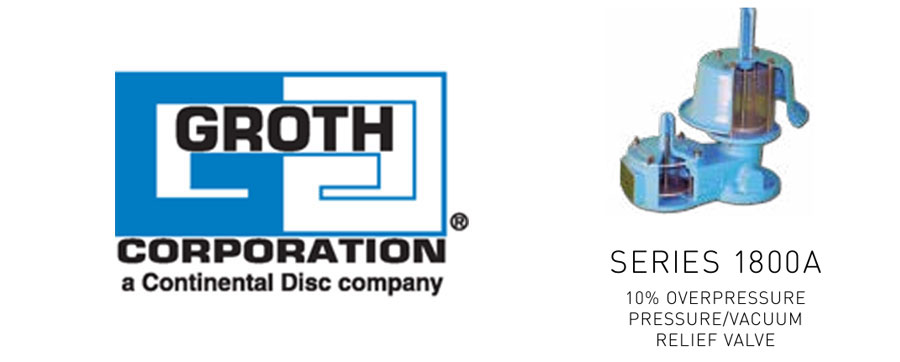

Series 1800A: 10% Overpressure Pressure/Vacuum Relief Valve
FEATURES & BENEFITS
- Rated flow at only 10% overpressure provides the ability to operate closer to the tank MAWP, increasing the operating range of the process
- Reduced seat leakage prevents fugitive emissions and conserves stored product
- Near zero blow down lowers operating cost by reducing product evaporation
- Peripheral and central seat guides ensure reliable, repeatable performance
- Self-draining housing body and drip rings protect seating surfaces from condensate and freezing, increasing operational reliability
TECHNICAL DETAILS
- Sizes 2” through 12” (DN50-DN300)
- 150# ANSI, PN10, PN16, JIS drilling classes available
- Pressure settings 0.5 osig to 15 psig (2.15 mbarg to 1.03 barg)
- Vacuum settings 0.5 osig to 12 psig (2.15 mbarg to 827 mbarg)
- Available in aluminum, carbon steel, stainless steel, fiberglass and other materials
- Optional materials of BUNA-N, FKM & other seating diaphragms can be provided when required
- ATEX and PED Approval
MORE INFO NEEDED ABOUT GROTH CORPORATION PRODUCTS?
Visit our Groth product page to find the full product selection guide (pdf) or visit our Groth Corporation - Industrial product selection guide.
