Groth Corporation - Model 7622B: Deflagration Arrester
GROTH CORPORATION - a Continental Disc company

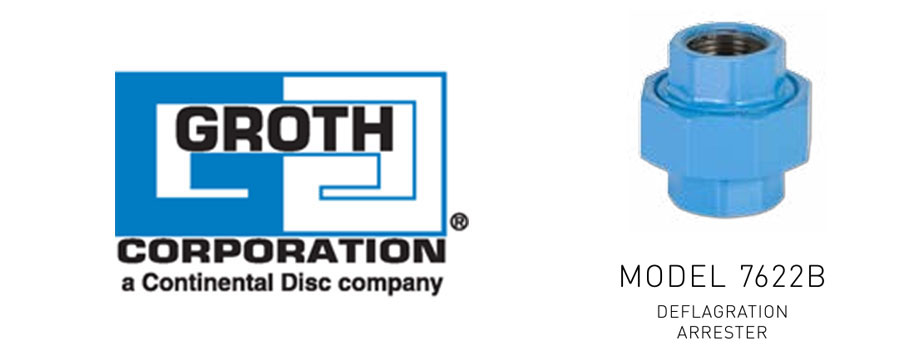

Series 7622B: Deflagration Arrester
FEATURES & BENEFITS
- Perforated plate construction reduces pressure drop
- Design permits easy access for inspection and maintenance
TECHNICAL DETAILS
- Sizes 1/2” through 2” (DN15-DN50)
- Available with carbon steel and stainless steel housing and stainless steel element
- Maximum operational pressure: 23.2 psia (1.60 bara)
- Operational temperature range: -4 to 140°F (-20 to 60°C)
- Certified to ATEX Directive in compliance with EN ISO 16852:2010
- IEC gas group IIB3 (MESG >= 0.65 mm)
MORE INFO NEEDED ABOUT GROTH CORPORATION PRODUCTS?
Visit our Groth product page to find the full product selection guide (pdf) or visit our Groth Corporation - Industrial product selection guide.
